Install Conductor with Helm (Enterprise)

Conductor cluster connections can be backed with basic Kubernetes manifests or packaged as a Helm chart. Helm managed cluster connections are a great option for users who already use Helm as a Kubernetes package manager or who are using GitOps tools such as ArgoCD or Flux. Leveraging this option for cluster connections allows Conductor (and optionally the Dapr control plane) to be configured only using Helm and effectively puts the cluster connection in "read-only mode" in the console.

Helm managed cluster connections are made up of two Helm charts; the agent Helm chart containing the Conductor agent and its supporting components, and the Dapr control plane as an entirely separate Helm chart. This allows users to add Conductor to their existing Helm management solutions while still taking advantage of the observability and advisory features of Conductor.

Note

When Dapr is managed by Helm, the following features are not supported in Conductor:

• Managed mTLS certificate rotation (coming soon)
• Automatic agent upgrades
• Automatic Dapr configuration sync
• Application and sidecar rollouts
• Dapr upgrades via the web console/CLI
• Cluster connection updates via the web console/CLI
• Automatically applying advisories

Create a cluster connection (Console)

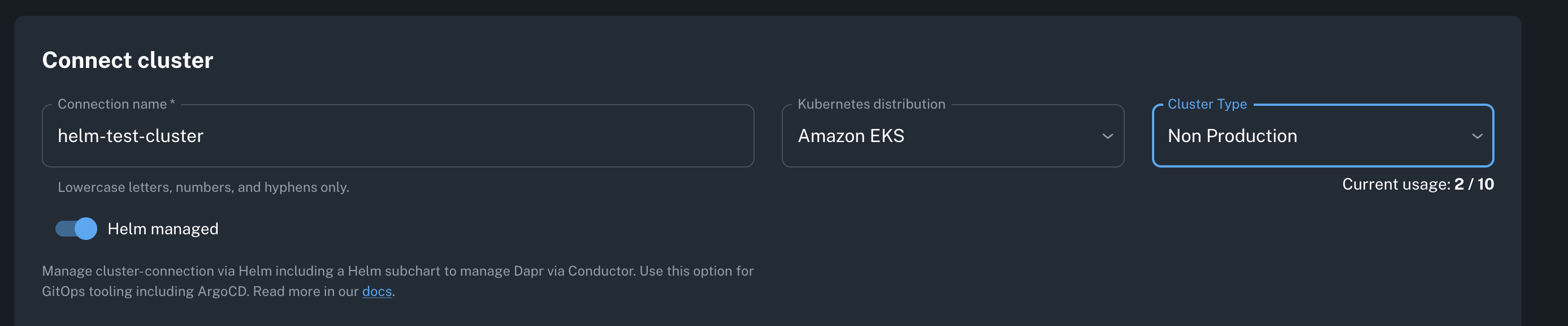

1. Create a new cluster connection via the Conductor console, choosing a Kubernetes distribution and Cluster type, and enabling the Helm managed option.

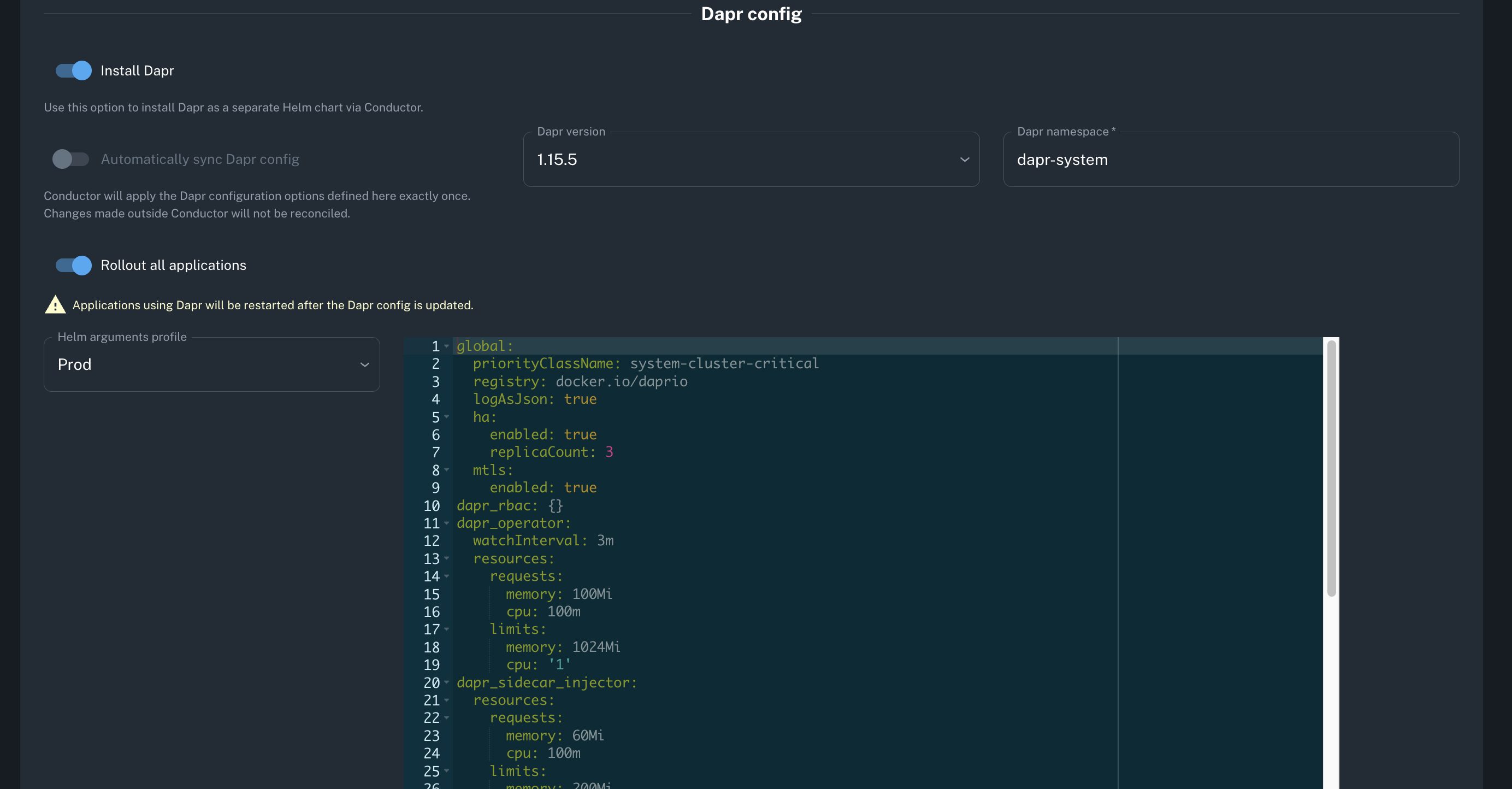

2. Optionally toggle the Install Dapr flag, if you want to install Dapr on your cluster as a separate Helm chart. Configure the Dapr version, Dapr namespace and other Helm values using one of the provided Helm argument profiles or by bringing your own.

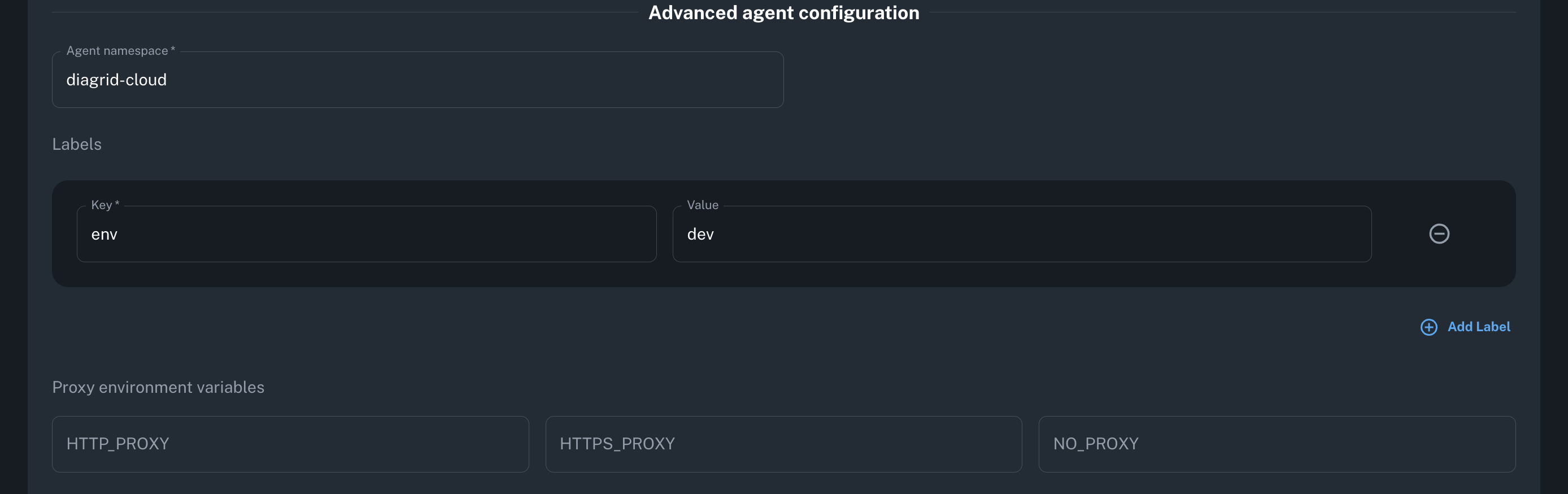

3. Optionally configure additional settings in the Advanced agent configuration section to change the agent namespace, add Kubernetes labels, tolerations etc.

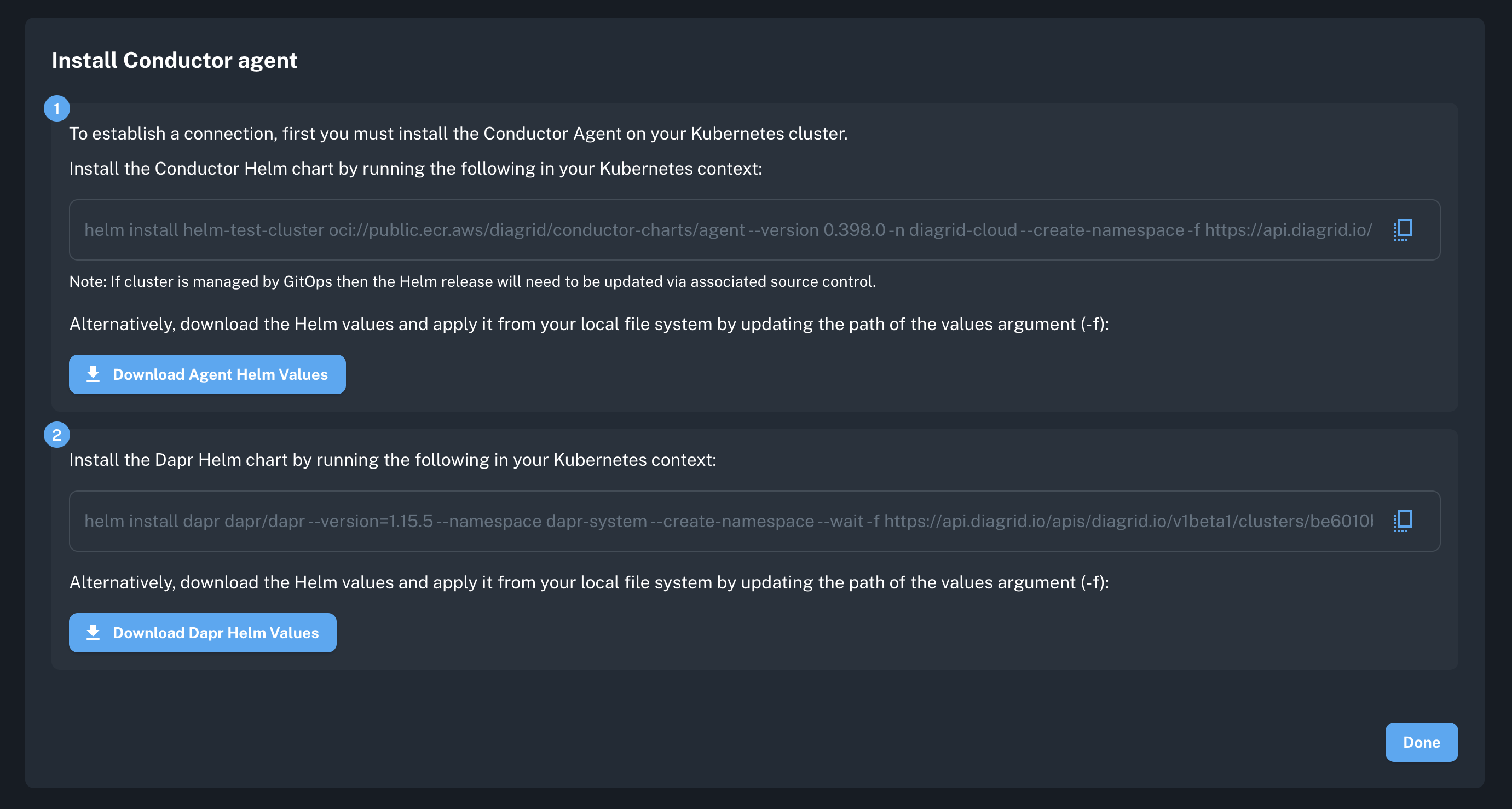

4. Click Create to generate the Helm commands and values.

5. Download and open the Agent and Dapr Helm values files to inspect their contents. Use the Helm values reference table below to check the desired behavior of both the Helm chart configurations for your cluster installation. Save the values in source control if it's part of your DevOps workflow.

6. After confirming the Helm values are correct for your configuration, install the Agent and Dapr Helm charts on your cluster using the provided commands. These will be installed as separate Helm charts.

   # Sample Agent Helm installation
   helm install <cluster-connection-name> oci://public.ecr.aws/diagrid/conductor-charts/agent \
   --version <version-number> \
   -n diagrid-cloud --create-namespace \
   -f https://api.diagrid.io/apis/diagrid.io/v1beta1/clusters/<cluster-id>/helmvalues?token=<cluster-token>

   # Sample Dapr Helm installation
   helm install dapr dapr/dapr \
   --version=<dapr-version> \
   --namespace dapr-system --create-namespace --wait \
   -f https://api.diagrid.io/apis/diagrid.io/v1beta1/clusters/<cluster-id>/daprhelmvalues?token=<cluster-token>

7. Watch the Conductor and Dapr control plane resources come online in the console: https://conductor.diagrid.io/clusters.

Agent Helm values reference

Required values

It is important that you do not overwrite the following Helm values when modifying or providing your own custom Helm values, as these supply the connection details from your Kubernetes cluster that allow it to connect to your Conductor organization.

caCertPem: "your-ca-cert-pem"

global:
  orgId: "your-org-id"
  agentId: "your-agent-id"
  manifestId: "your-manifest-id"

agent:
  key: "your-agent-key"
  keyB64: "your-agent-key-base64"

Global configuration

Global configuration applies to the Conductor agent and OpenTelemetry logs and metrics collectors.

Parameter	Description	Default
global.namespace	Namespace for deployment	diagrid-cloud
global.namespaceDefault	Default namespace	diagrid-cloud
global.cloudUrl	Diagrid cloud endpoint	cloudgrid.diagrid.io:443
global.orgId	Organization ID	""
global.agentId	Agent ID	""
global.manifestId	Manifest ID	""
global.imageTag	Global image tag	""
global.mainServiceAccountName	Main service account name	diagrid-agent
global.sccTargetServiceAccountName	SCC target service account	diagrid-agent-logs-collector
global.kubernetesOs	Kubernetes OS	linux
global.isOpenShift	OpenShift deployment flag	false
global.isLocal	Local deployment flag	false
global.customCA	Custom CA certificate	""
global.proxyConfig	Proxy configuration

Conductor agent

Parameter	Description	Default
agent.image	Agent image repository	us-central1-docker.pkg.dev/prj-common-p-shared-79896/reg-p-common-docker-public/agent
agent.replicas	Number of agent replicas	2
agent.logLevel	Logging level	info
agent.installDependencies	Install dependencies	false
agent.tlsEnabled	Enable TLS	true
agent.tlsMutual	Enable mutual TLS	false
agent.key	Agent key	""
agent.keyB64	Base64 encoded agent key	""
agent.goMemLimit	Go memory limit	675MiB

Conductor OpenTelemetry metrics collector

Parameter	Description	Default
otelMetricsCollector.enabled	Enable metrics collector	true
otelMetricsCollector.labels	Additional labels
otelMetricsCollector.replicas	Number of replicas	2
otelMetricsCollector.image	Collector image	us-central1-docker.pkg.dev/prj-common-p-shared-79896/reg-p-common-docker-public/diagrid-otel-collector
otelMetricsCollector.logLevel	Logging level	info
otelMetricsCollector.memoryLimiter	Memory limiter settings	See values.yaml
otelMetricsCollector.tlsEnabled	Enable TLS	true
otelMetricsCollector.remoteWriteURL	Metrics endpoint	https://metrics.diagrid.io/api/v1/push
otelMetricsCollector.remoteWriteTlsInsecure	Allow insecure TLS	true
otelMetricsCollector.remoteWriteAuthEnabled	Enable auth	true

Conductor OpenTelemetry logs collector

Parameter	Description	Default
otelLogsCollector.enabled	Enable logs collector	true
otelLogsCollector.labels	Additional labels
otelLogsCollector.image	Collector image	us-central1-docker.pkg.dev/prj-common-p-shared-79896/reg-p-common-docker-public/diagrid-otel-collector
otelLogsCollector.logLevel	Logging level	info
otelLogsCollector.daprLogsURL	Dapr logs endpoint	cloudgrid.diagrid.io:443
otelLogsCollector.memoryLimiter	Memory limiter settings	See values.yaml
otelLogsCollector.tlsEnabled	Enable TLS	true
otelLogsCollector.tlsInsecure	Allow insecure TLS	false
otelLogsCollector.isLogsLimited	Enable log limiting	true

Dapr Helm values reference

All Dapr Helm values are from the Dapr open-source Helm chart. Use the Dapr Helm README Configuration to modify any properties required in your Dapr installation. Default Helm arguments profiles are provided, for example the following for Dev environments.

Note

Dapr is installed as a separate Helm chart, removing the management from Conductor and effectively putting the Conductor console into "read-only-mode".

global:
  registry: docker.io/daprio
  ha:
    enabled: false
  mtls:
    enabled: true
dapr_rbac: {}
dapr_operator:
  watchInterval: 3m
  resources:
    requests:
      memory: 100Mi
      cpu: 100m
    limits:
      memory: 500Mi
      cpu: '1'
dapr_sidecar_injector:
  resources:
    requests:
      memory: 30Mi
      cpu: 100m
    limits:
      memory: 500Mi
      cpu: '1'
dapr_sentry:
  resources:
    requests:
      memory: 30Mi
      cpu: 100m
    limits:
      memory: 500Mi
      cpu: '1'
dapr_placement:
  cluster:
    forceInMemoryLog: true
  resources:
    requests:
      memory: 75Mi
      cpu: 250m
    limits:
      memory: 500Mi
      cpu: '1'
dapr_scheduler:
  resources:
    requests:
      memory: 150Mi
      cpu: 250m
    limits:
      memory: 1024Mi
      cpu: '1'

Default resource settings

The following are the default values for the Conductor agent and Dapr control plane resource settings. These are considered a good starting place for Dev/Prod environments respectively, but should be monitored and then updated to ensure appropriate values are set.

Dapr control plane: Dev

dapr:
  dapr_operator:
    resources:
      requests:
        memory: 100Mi
        cpu: 100m
      limits:
        memory: 500Mi
        cpu: '1'
  dapr_sidecar_injector:
    resources:
      requests:
        memory: 30Mi
        cpu: 100m
      limits:
        memory: 500Mi
        cpu: '1'
  dapr_sentry:
    resources:
      requests:
        memory: 30Mi
        cpu: 100m
      limits:
        memory: 500Mi
        cpu: '1'
  dapr_placement:
    resources:
      requests:
        memory: 75Mi
        cpu: 250m
      limits:
        memory: 500Mi
        cpu: '1'
  dapr_scheduler:
    resources:
      requests:
        memory: 150Mi
        cpu: 250m
      limits:
        memory: 1024Mi
        cpu: '1'

Dapr control plane: Prod

dapr_operator:
  resources:
    requests:
      memory: 100Mi
      cpu: 100m
    limits:
      memory: 1024Mi
      cpu: '1'
dapr_sidecar_injector:
  resources:
    requests:
      memory: 60Mi
      cpu: 100m
    limits:
      memory: 200Mi
      cpu: '1'
dapr_sentry:
  resources:
    requests:
      memory: 60Mi
      cpu: 100m
    limits:
      memory: 1024Mi
      cpu: '1'
dapr_placement:
  resources:
    requests:
      memory: 75Mi
      cpu: 250m
    limits:
      memory: 1024Mi
      cpu: '1'
dapr_scheduler:
  resources:
    requests:
      memory: 250Mi
      cpu: 250m
    limits:
      memory: 1024Mi
      cpu: '1'

Conductor agent

resources:
  limits:
    memory: 750Mi
  requests:
    cpu: 10m
    memory: 250Mi

Conductor OpenTelemetry metrics collector

resources:
  limits:
    memory: 2Gi
  requests:
    cpu: 100m
    memory: 250Mi

Conductor OpenTelemetry logs collector

resources:
  limits:
    memory: 750Mi
  requests:
    cpu: 10m
    memory: 250Mi
